Fleet & Container Specifications

Comprehensive dimensions, payload capacities, and volume metrics for our complete container fleet.

CATEGORY 1: STANDARD DRY CONTAINERS

Standard multi-purpose containers for general cargo, dry goods, and boxed commodities.

20FT Standard Container (Dry Van)
20FT

1. 20FT Standard Container (Dry Van)

  • Internal Dimensions: 5.90m x 2.35m x 2.39m / 19'4" x 7'8" x 7'10"
  • Max Payload: 28,200 kg / 62,170 lbs
  • Volume: 33.2 CBM / 1,172 cu ft
Best Suited For: Heavy, dense, and compact cargo such as machinery parts, industrial metals, sugar, rice, and grains.
40FT Standard Container (Dry Van)
40FT

2. 40FT Standard Container (Dry Van)

  • Internal Dimensions: 12.03m x 2.35m x 2.39m / 39'5" x 7'8" x 7'10"
  • Max Payload: 28,800 kg / 63,493 lbs
  • Volume: 67.7 CBM / 2,390 cu ft
Best Suited For: Standard voluminous commercial goods, consumer retail products, furniture, and general manufacturing cargo.

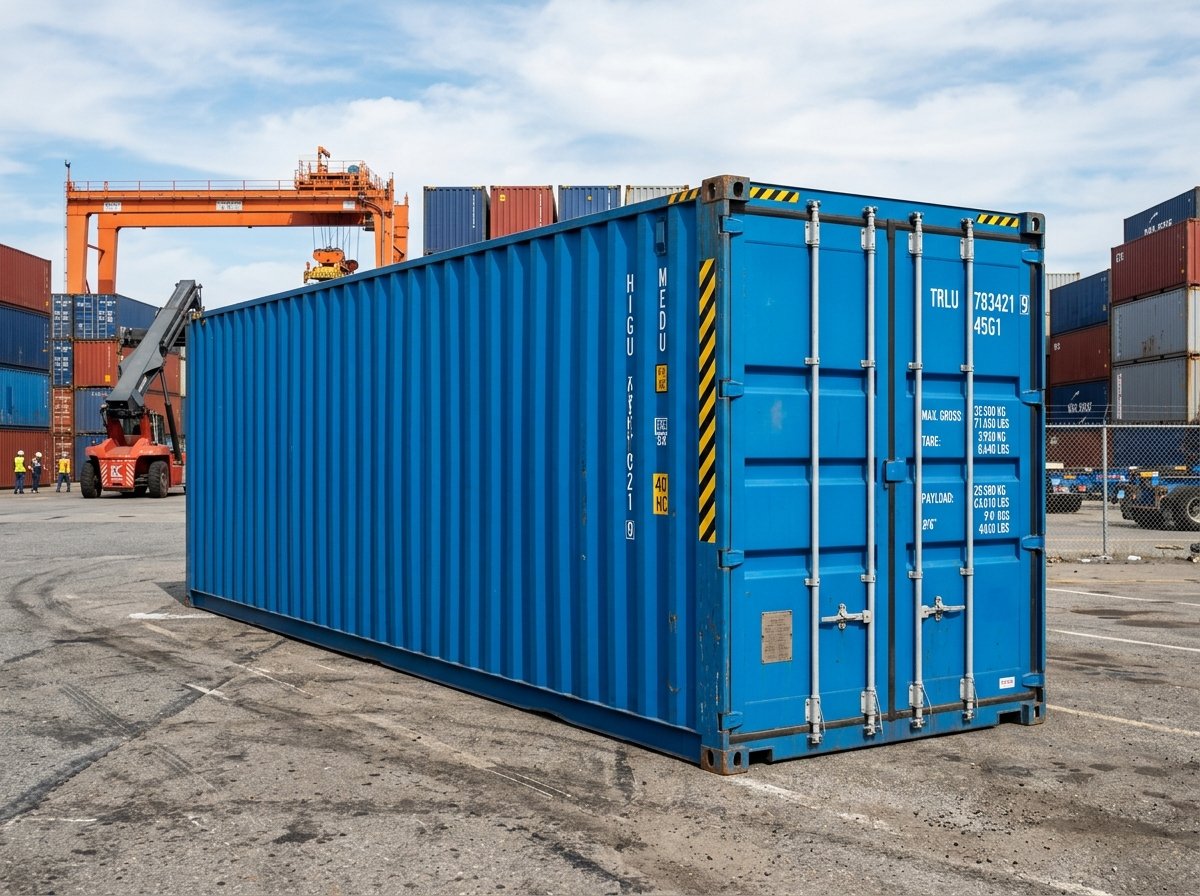

40FT High Cube Container
40HC

3. 40FT High Cube Container (40HC)

  • Internal Dimensions: 12.03m x 2.35m x 2.69m / 39'5" x 7'8" x 8'10"
  • Max Payload: 28,600 kg / 63,052 lbs
  • Volume: 76.2 CBM / 2,691 cu ft
Best Suited For: High-volume light cargo, garments-on-hangers (GOH), electronics, and tall equipment requiring extra vertical space.

CATEGORY 2: SPECIAL EQUIPMENT (FLAT RACK & OPEN TOP)

Engineered for Out-of-Gauge (OOG), oversized, and heavy-lift industrial project cargo.

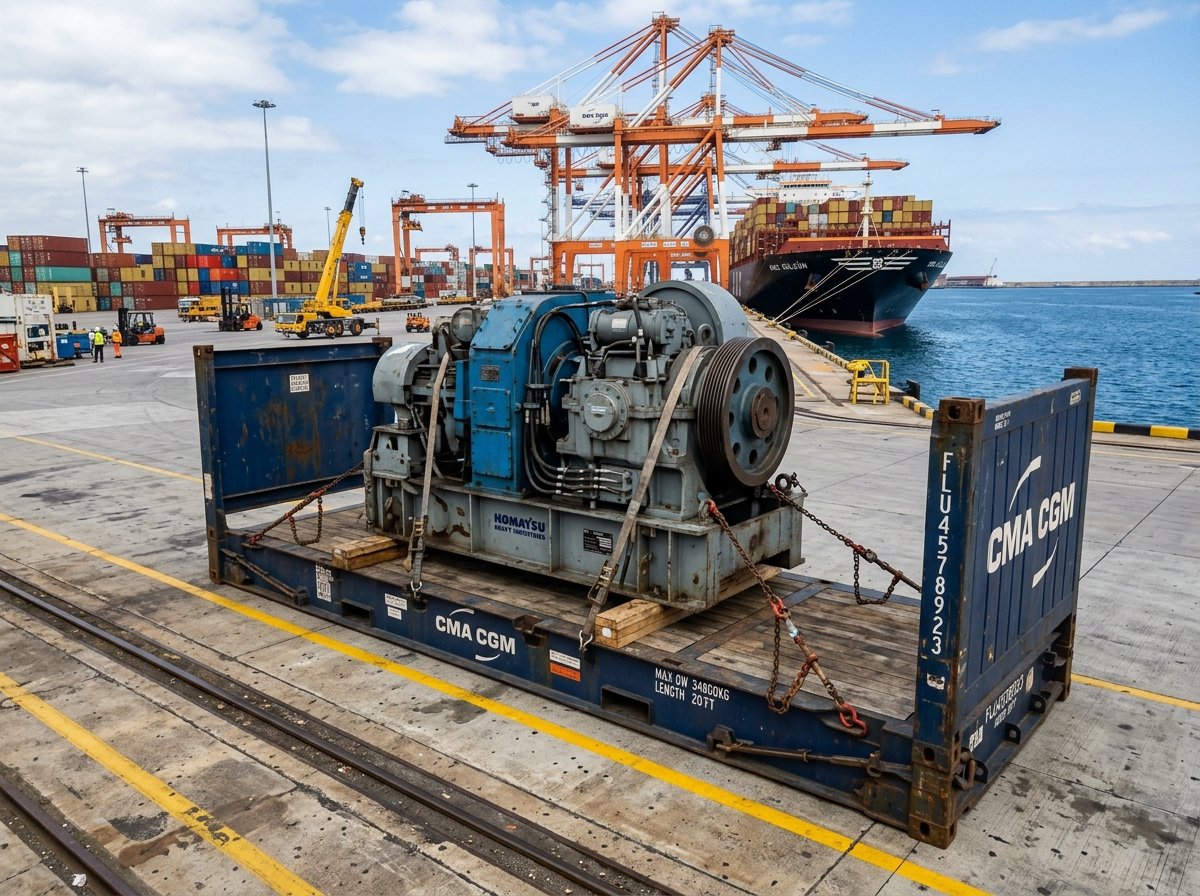

20FT Flat Rack Container
20FT FLAT RACK

4. 20FT Flat Rack Container

  • Internal Dimensions: 5.94m x 2.35m x 2.35m / 19'6" x 7'8" x 7'8"
  • Max Payload: 30,100 kg / 66,359 lbs
  • Cubic Capacity: Open Top / Open Sides (OOG Cargo)
Best Suited For: Heavy machinery, industrial boilers, steel pipes, trucks, and dense loads loaded from top or sides.

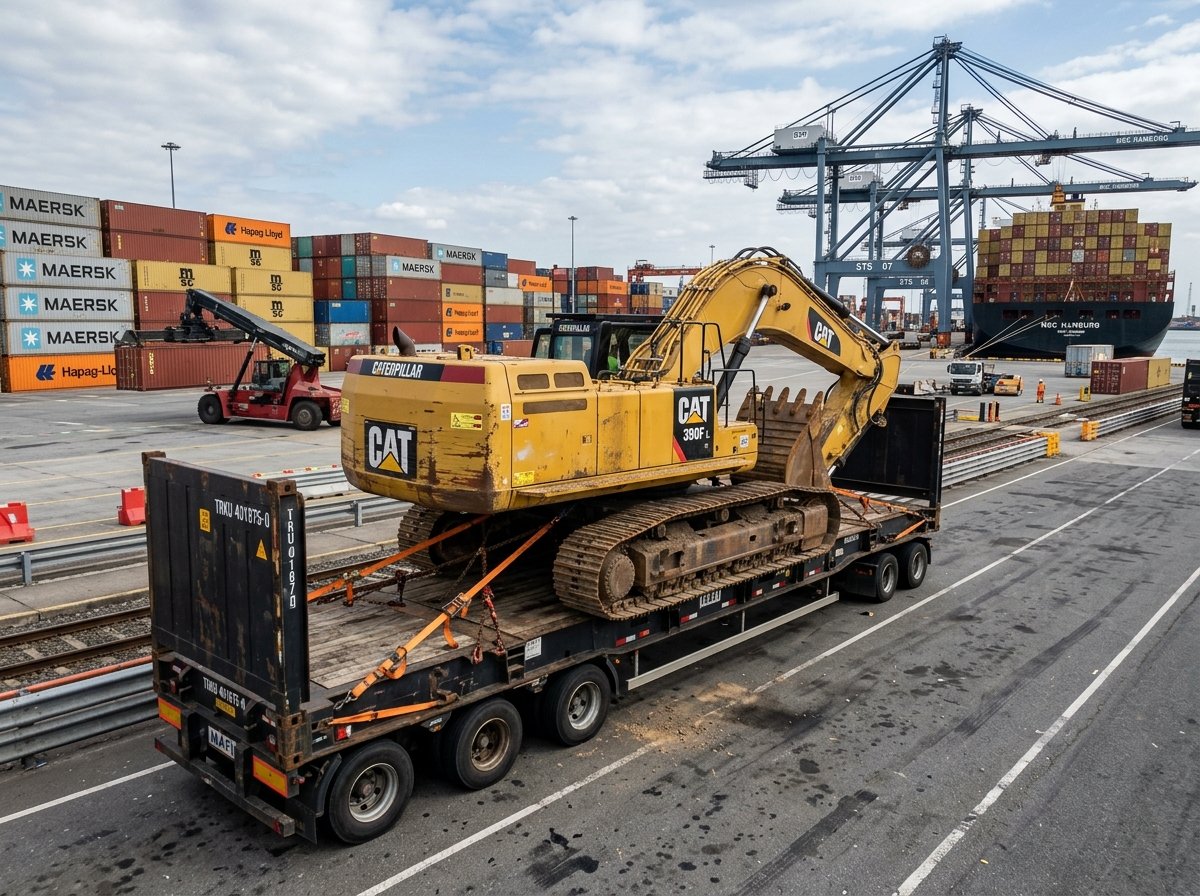

40FT Flat Rack Container
40FT FLAT RACK

5. 40FT Flat Rack Container

  • Internal Dimensions: 12.13m x 2.40m x 2.14m / 39'9" x 7'10" x 7'0"
  • Max Payload: 40,000 kg / 88,200 lbs
  • Cubic Capacity: Open Top / Open Sides (Massive OOG)
Best Suited For: Oversized construction equipment, large yachts, wind turbine components, and heavy structural steel.

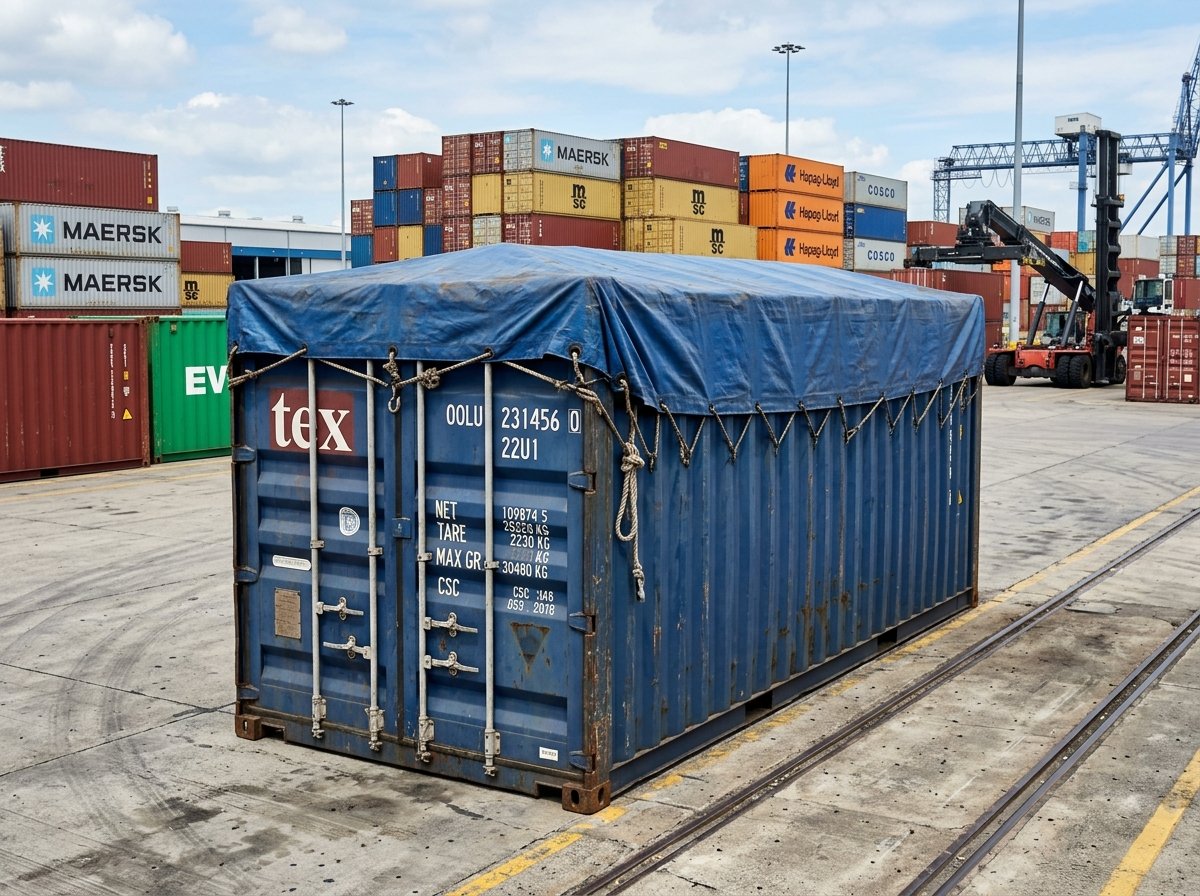

20FT Open Top Container
20FT OPEN TOP

6. 20FT Open Top Container

  • Internal Dimensions: 5.89m x 2.35m x 2.35m / 19'4" x 7'8" x 7'8"
  • Max Payload: 28,100 kg / 61,949 lbs
  • Cubic Capacity: 32.5 CBM / 1,147 cu ft
Best Suited For: Over-height cargo loaded via overhead cranes (e.g., minerals, logs, heavy scrap glass).

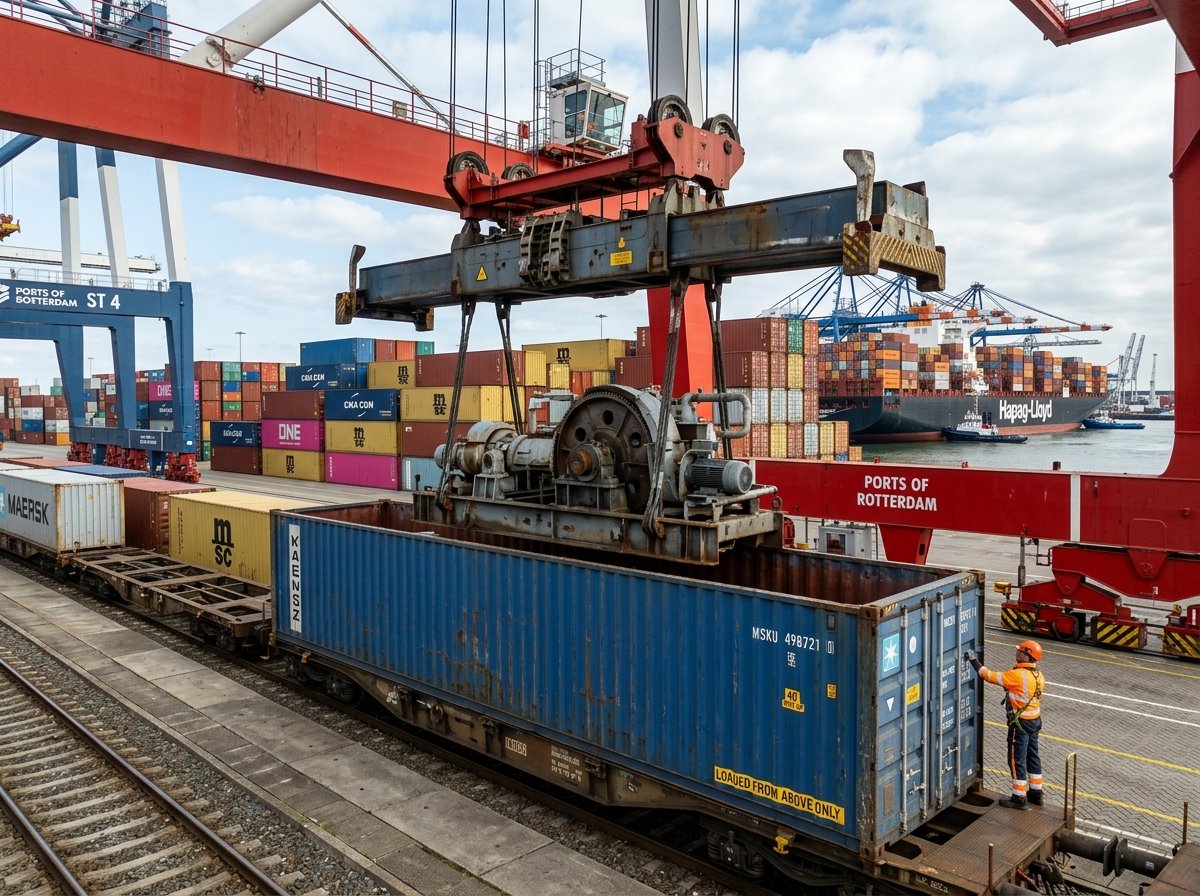

40FT Open Top Container
40FT OPEN TOP

7. 40FT Open Top Container

  • Internal Dimensions: 12.02m x 2.35m x 2.35m / 39'5" x 7'8" x 7'8"
  • Max Payload: 26,600 kg / 58,642 lbs
  • Cubic Capacity: 66.5 CBM / 2,348 cu ft
Best Suited For: Tall machinery, industrial components, and raw bulk materials requiring crane-loading & tarpaulin.

CATEGORY 3: REFRIGERATED CONTAINERS (REEFERS)

Temperature-controlled units to maintain exact climate specifications for cold-chain logistics.

20FT Refrigerated Container (Reefer)
20FT REEFER

8. 20FT Refrigerated Container (Reefer)

  • Internal Dimensions: 5.44m x 2.29m x 2.27m / 17'10" x 7'6" x 7'5"
  • Max Payload: 27,400 kg / 60,406 lbs
  • Cubic Capacity: 28.3 CBM / 999 cu ft
  • Temp Range: -30°C to +30°C
Best Suited For: Fresh produce, meat, dairy items, seafood, and temperature-sensitive chemicals over shorter transits.

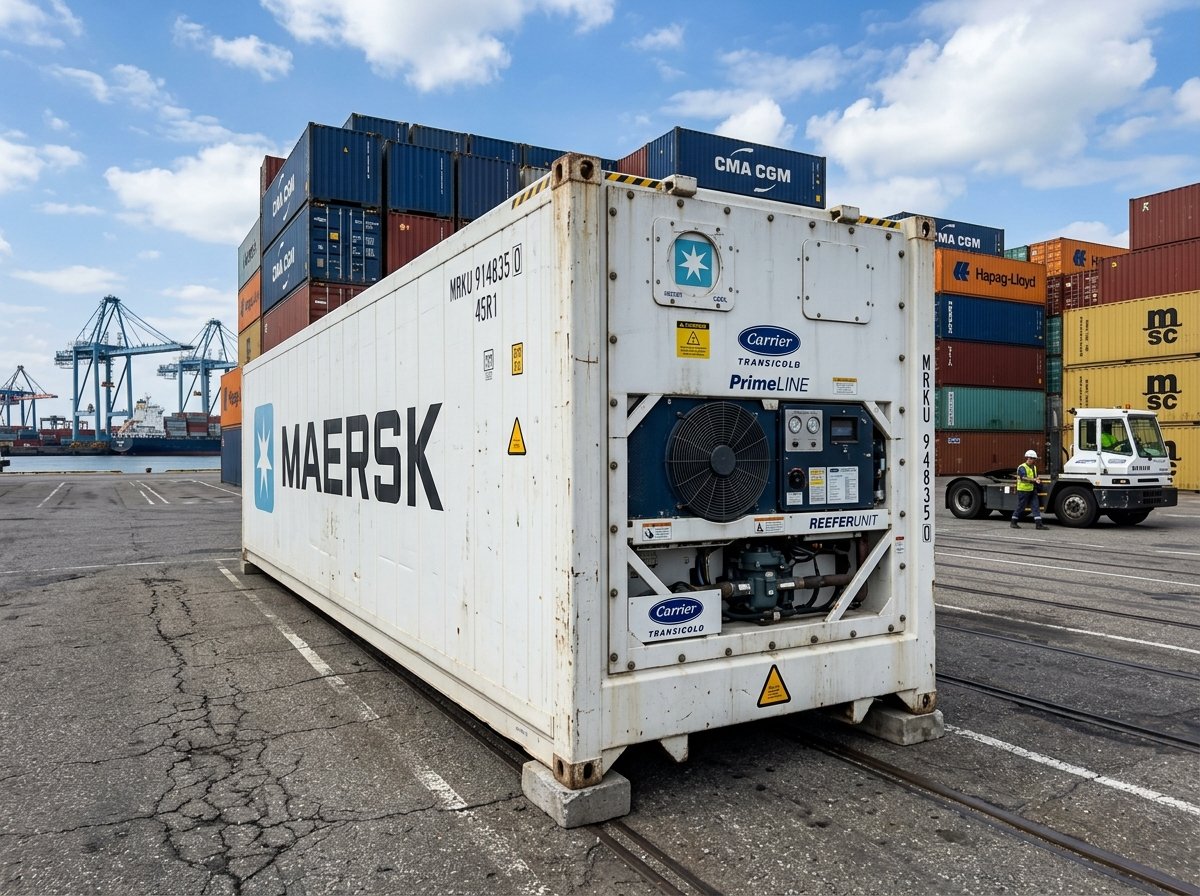

40FT Refrigerated Container (Reefer)
40FT REEFER

9. 40FT Refrigerated Container (Reefer)

  • Internal Dimensions: 11.56m x 2.28m x 2.25m / 37'11" x 7'5" x 7'4"
  • Max Payload: 29,400 kg / 64,816 lbs
  • Cubic Capacity: 59.3 CBM / 2,094 cu ft
  • Temp Range: -30°C to +30°C
Best Suited For: High-volume perishable exports, pharmaceuticals, seasonal fruits, frozen goods, and bio-products.
